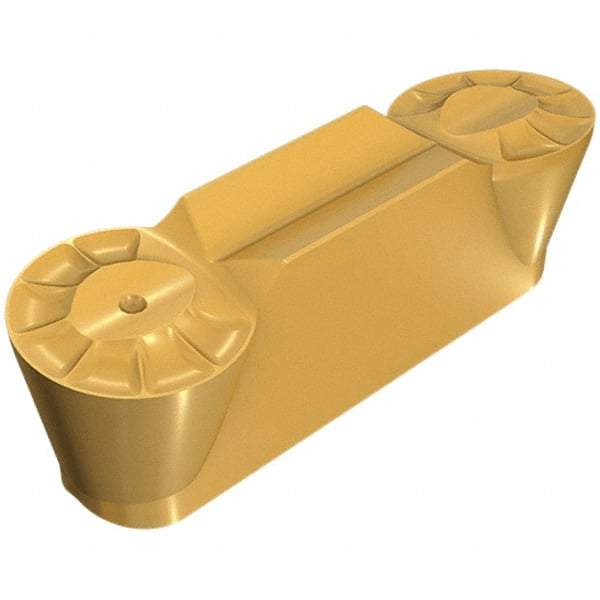

Iscar - 4002HGPL Y Grade IC354, 4mm Cutting Width Carbide Grooving Insert - 2.4mm Max Depth of Cut, Neutral, 0.2mm Corner Radius, TiN/TiCN Finish
Item #: 63235667
Brand: Iscar
Model #: 6200243
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HGPL |
| Insert Size | 4002 |
| Material | Carbide |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Maximum Depth of Cut (mm) | 2.40 |
| Maximum Depth of Cut (Decimal Inch) | 0.0945 |
| Manufacturer's Grade | IC354 |
| Coating | TiN/TiCN |
| Insert Hand | Neutral |
| Relief Angle | 7 |
| Chipbreaker | Y |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Coating Process | PVD |
| Overall Length (mm) | 16.00 |
| Overall Length (Decimal Inch) | 0.6300 |
| Series | Heliface |
