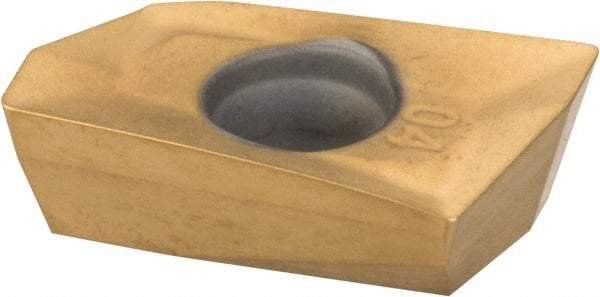

Kennametal - EC1004 LD Grade KC725M Carbide Milling Insert - TiN/TiCN/TiN Finish, 0.148" Thick, 0.4mm Corner Radius
Item #: 63220446
Brand: Kennametal
Model #: 3682514
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | EC |
| Insert Size | 1004 |
| Material | Carbide |
| Material Grade | C5/C6/C7 |
| Manufacturer's Grade | KC725M |
| Coating | TiN/TiCN/TiN |
| Width (Decimal Inch) | 0.2660 |
| Length (Decimal Inch) | 0.4744 |
| Thickness (Decimal Inch) | 0.1480 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Corner Radius (mm) | 0.40 |
| Relief Angle | 15.000 |
| Coating Process | PVD |
| Shape | Parallelogram |
| Chipbreaker | LD |
| ISO Number | EDCT10T304PDERLD |
