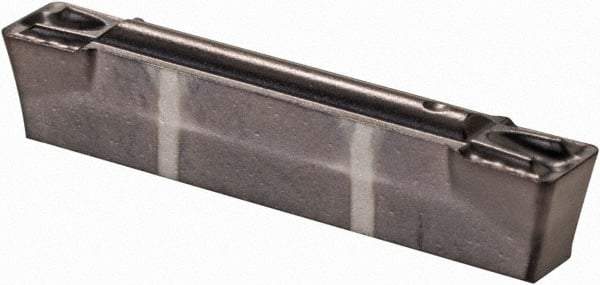

Kennametal - 0305A4G GUP Grade KCU10, 3.05mm Cutting Width Carbide Grooving Insert - 3mm Max Depth of Cut, Neutral, 0.4mm Corner Radius, TiCN/Al2O3/TiN Finish
Item #: 63214787
Brand: Kennametal
Model #: 3791266
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | A4G |
| Insert Size | 0305 |
| Material | Carbide |
| Cutting Width (mm) | 3.05 |
| Cutting Width (Decimal Inch) | 0.1201 |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Material Grade | C3/C4 |
| Manufacturer's Grade | KCU10 |
| Coating | TiCN/Al2O3/TiN |
| Insert Hand | Neutral |
| Insert Seat Size | 3 |
| Chipbreaker | GUP |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Coating Process | PVD |
| Overall Length (mm) | 20.15 |
| Overall Length (Decimal Inch) | 0.7933 |
| Series | A4 |
| Rake | Positive |
