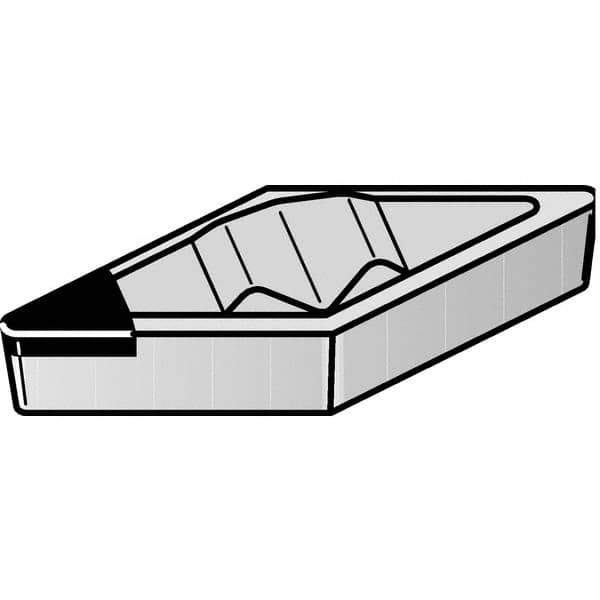

Kennametal - VPGR333, KD1425 Grade Diamond Tipped Profiling Insert - Uncoated, 35° Incl Angle, Diamond, 0.6538" Side Length, 3/16" Thick, 3/64" Corner Radius, 3/8" Inscribed Circle
Item #: 63154710
Brand: Kennametal
Model #: 3643860
Exact Tooling IR#: 04
Features and Benefits
Diamond tips are one of the hardest cutting materials. It is brazed onto a carbide insert. Commonly used at high cutting speeds on non-ferrous metals.
| Product Specifications | |
|---|---|
| Material | Diamond Tipped |
| Insert Style | VPGR |
| Insert Size | 333 |
| Manufacturer's Grade | KD1425 |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (mm) | 4.76 |
| Thickness (Decimal Inch) | 0.1875 |
| Thickness (Inch) | 3/16 |
| Corner Radius (mm) | 1.19 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Relief Angle | 8 |
| Coating | Uncoated |
| Side Length (Decimal Inch) | 0.6538 |
| Side Length (mm) | 16.61 |
| Included Angle | 35 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | Top Notch |
| Insert Holding Method | Clamp |
| Shape | Diamond |
