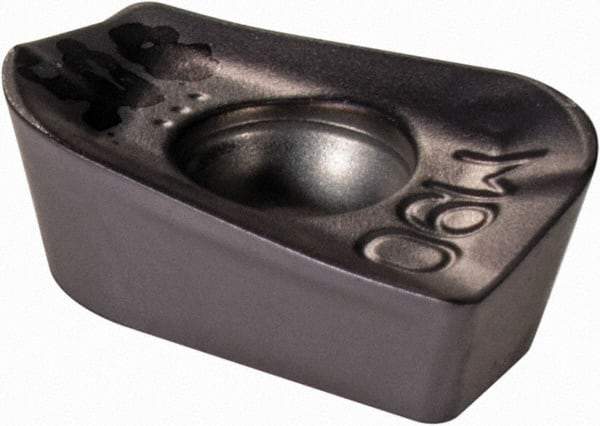

Iscar - HM90 APKT100330 Grade IC908 Carbide Milling Insert - TiAlN Finish, 0.139" Thick, 3mm Corner Radius
Item #: 63109755
Brand: Iscar
Model #: 5603497
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HM90 APKT |
| Insert Size | 100330 |
| Material | Carbide |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC908 |
| Coating | TiAlN |
| Width (Decimal Inch) | 0.2661 |
| Length (Decimal Inch) | 0.4094 |
| Thickness (Decimal Inch) | 0.1390 |
| Corner Radius (Decimal Inch) | 0.1181 |
| Corner Radius (mm) | 3.00 |
| Relief Angle | 11.000 |
| Rake Angle | 23 |
| Rake | Positive |
| Coating Process | PVD |
| Included Angle | 85 |
| Shape | Parallelogram |
| Maximum Depth of Cut (mm) | 9.83 |
| Maximum Depth of Cut (Decimal Inch) | 0.3870 |
| ISO Number | HM90 APKT 1003PDR |
