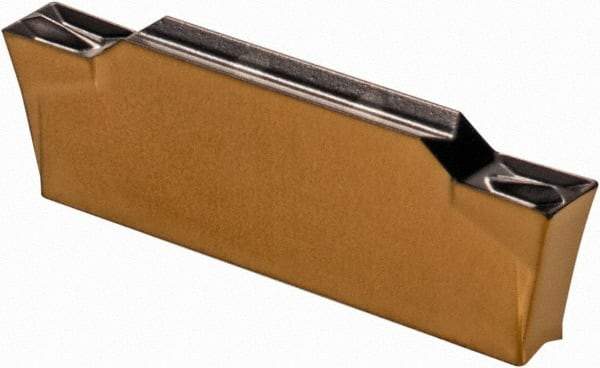

Iscar - 24GDMW Grade IC254, 2.4mm Cutting Width Carbide Grooving Insert - 18mm Max Depth of Cut, Neutral, 0.18mm Corner Radius, TiN Finish
Item #: 63102537
Brand: Iscar
Model #: 6404238
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GDMW |
| Insert Size | 24 |
| Material | Carbide |
| Cutting Width (mm) | 2.40 |
| Cutting Width (Decimal Inch) | 0.0945 |
| Maximum Depth of Cut (mm) | 18.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7087 |
| Manufacturer's Grade | IC254 |
| Coating | TiN |
| Insert Hand | Neutral |
| Cutting Height (mm) | 5.50 |
| Cutting Height (Decimal Inch) | 0.2165 |
| Relief Angle | 7 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting; Turning |
| Corner Radius (mm) | 0.18 |
| Corner Radius (Decimal Inch) | 0.0071 |
| Coating Process | PVD |
| Overall Length (mm) | 20.00 |
| Overall Length (Decimal Inch) | 0.7874 |
| Series | Cut Grip |
| ISO Number | GDMW 2.4 |
| Manufacturers Catalog Number | GDMW 2.4 |
