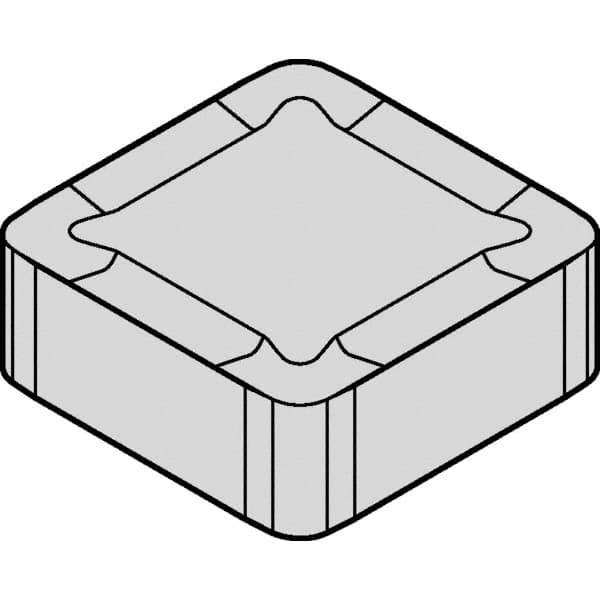

Kennametal - SNXF43 GP Grade KCK15 Carbide Milling Insert - TiN/TiCN/Al2O3 Finish, 0.187" Thick, 1/2" Inscribed Circle, 0.047" Corner Radius
Item #: 62769419
Brand: Kennametal
Model #: 5420839
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNXF |
| Insert Size | 43 |
| Material | Carbide |
| Manufacturer's Grade | KCK15 |
| Coating | TiN/TiCN/Al2O3 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Relief Angle | 0.000 |
| Coating Process | CVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Neutral |
| Chipbreaker | GP |
| Cutting Edge Style | Honed |
| ISO Number | SNXF1204ZNSNGP |
