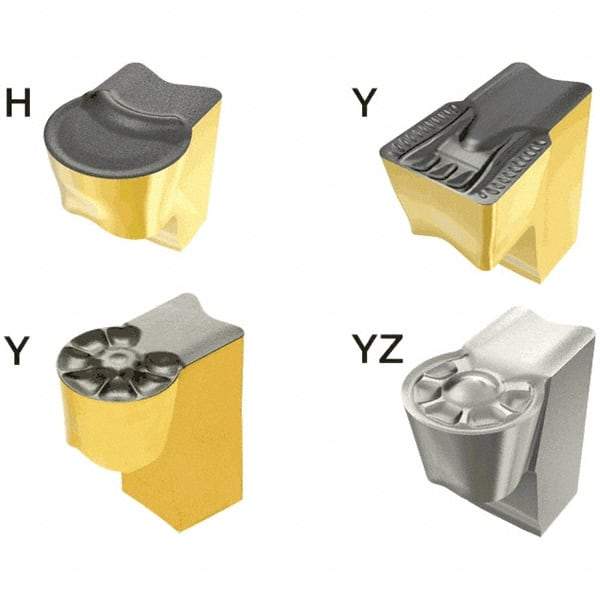

Iscar - 1260TAGB H Grade IC8250, 12mm Cutting Width Carbide Grooving Insert - 6mm Max Depth of Cut, Neutral, 6mm Corner Radius, TiCN/Al2O3/TiN Finish
Item #: 62605332
Brand: Iscar
Model #: 6404096
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TAGB |
| Insert Size | 1260 |
| Material | Carbide |
| Cutting Width (mm) | 12.00 |
| Cutting Width (Decimal Inch) | 0.4724 |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Manufacturer's Grade | IC8250 |
| Coating | TiCN/Al2O3/TiN |
| Insert Hand | Neutral |
| Chipbreaker | H |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting; Turning |
| Corner Radius (mm) | 6.00 |
| Corner Radius (Decimal Inch) | 0.2362 |
| Coating Process | PVD |
| Series | Sumo-Grip |
