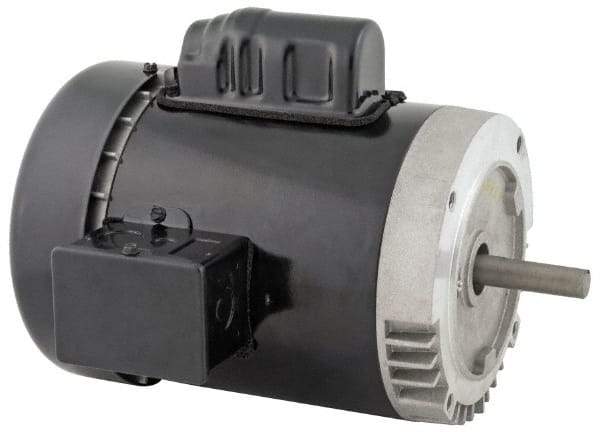

US Motors - 3/4 hp, TEFC Enclosure, Auto Thermal Protection, 1,725 RPM, 115/208-230 Volt, 60 Hz, Capacitor Start Motor - Size 56C Frame, C-Face Mount, 1 Speed, Ball Bearings, 10.92 Full Load Amps, B Class Insulation, Reversible
Item #: 62553268
Brand: US Motors
Model #: T34CA2JCR
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Capacitor Start |
| Type of Enclosure | TEFC |
| Horsepower | 3/4 |
| Thermal Protection Rating | Auto |
| Name Plate RPMs | 1725 |
| Voltage | 115/208-230 |
| Frequency Hz | 60 |
| Frame Size | 56C |
| Mount Type | C-Face |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Applications | General Purpose |
| Full Load Amperage | 10.92 |
| Insulation Class | B |
| Frame Material | Steel |
| Overall Length (Decimal Inch) | 11.8900 |
| Shaft Diameter x Length (Inch) | 5/8 x 2-1/16 |
| Full Load Efficiency Rating | 69.27 |
| Service Factor Rating | 1.15 |
| Motor Rotation | Reversible |
| Length of Enclosure (Decimal Inch) | 9.827 |
| PSC Code | 6105 |
