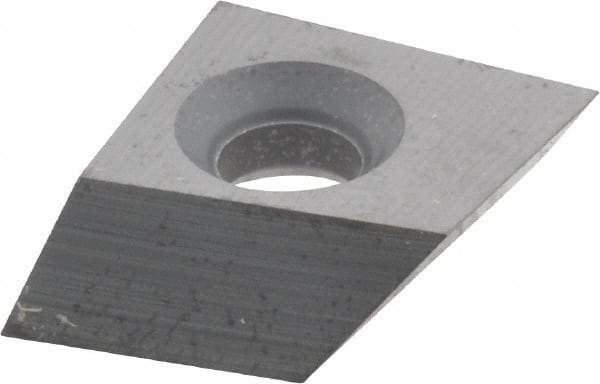

Kennametal - 4.21508666 Grade K110M Carbide Milling Insert - Uncoated, 0.197" Thick, 15mm Inscribed Circle
Item #: 62516950
Brand: Kennametal
Model #: 1191265
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 4.21508 |
| Insert Size | 666 |
| Material | Carbide |
| Material Grade | C2/C3 |
| Manufacturer's Grade | K110M |
| Coating | Uncoated |
| Length (Decimal Inch) | 0.4134 |
| Inscribed Circle (mm) | 15.00 |
| Inscribed Circle (Decimal Inch) | 0.5906 |
| Thickness (Decimal Inch) | 0.1970 |
| Hole Diameter (mm) | 5.00 |
| Hole Diameter (Decimal Inch) | 0.1969 |
| Shape | Trigon |
| ISO Number | 4.21508R666 |
