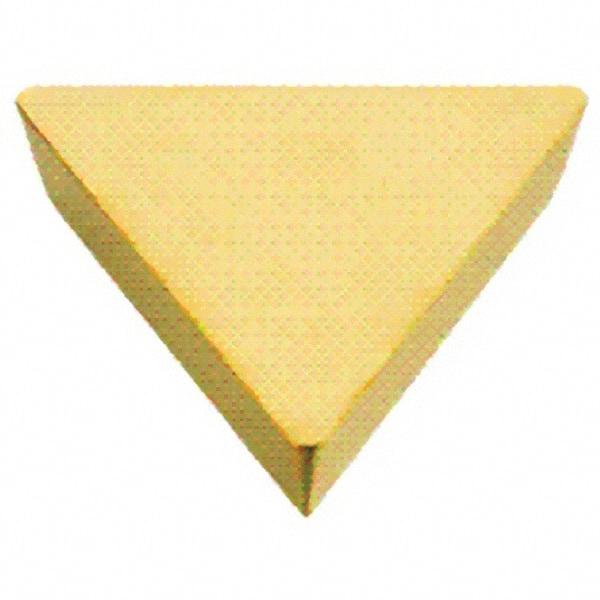

Iscar - TPU221 Grade IC9054 Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 1/8" Thick, 1/4" Inscribed Circle, 0.41mm Corner Radius
Item #: 62413828
Brand: Iscar
Model #: 5507595
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPU |
| Insert Size | 221 |
| Material | Carbide |
| Manufacturer's Grade | IC9054 |
| Coating | TiCN/Al2O3/TiN |
| Length (Decimal Inch) | 0.4330 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Corner Radius (mm) | 0.41 |
| Relief Angle | 11.000 |
| Rake Angle | 11 |
| Rake | Neutral |
| Coating Process | CVD |
| Included Angle | 60 |
| Shape | Triangle |
| Manufacturers Catalog Number | TPU 221 |
