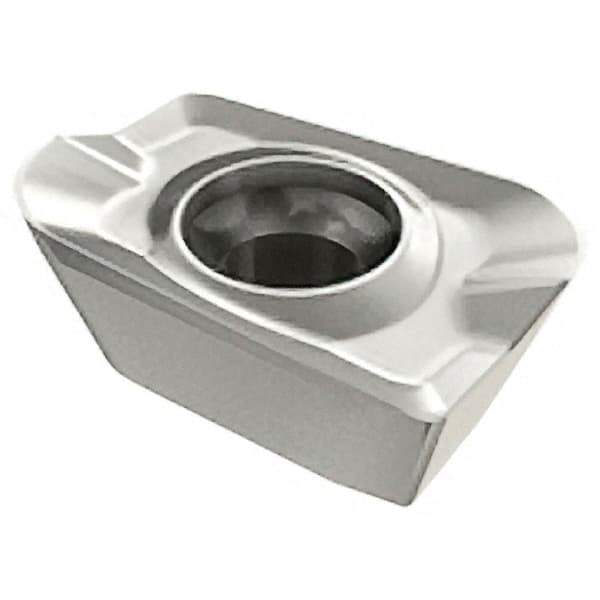

Iscar - ADKT150564 HM Grade IC328 Carbide Milling Insert - TiCN Finish, 0.2087" Thick, 6.2mm Corner Radius
Item #: 62315874
Brand: Iscar
Model #: 5602157
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ADKT |
| Insert Size | 150564 |
| Material | Carbide |
| Manufacturer's Grade | IC328 |
| Coating | TiCN |
| Width (Decimal Inch) | 0.3768 |
| Length (Decimal Inch) | 0.5827 |
| Thickness (Decimal Inch) | 0.2087 |
| Corner Radius (Decimal Inch) | 0.2440 |
| Corner Radius (mm) | 6.20 |
| Relief Angle | 15.000 |
| Coating Process | PVD |
| Included Angle | 85 |
| Shape | Parallelogram |
| Insert Hand | Left Hand |
| Chipbreaker | HM |
| Maximum Depth of Cut (mm) | 13.20 |
| Maximum Depth of Cut (Decimal Inch) | 0.5197 |
| ISO Number | ADKT 150564L-HM |
