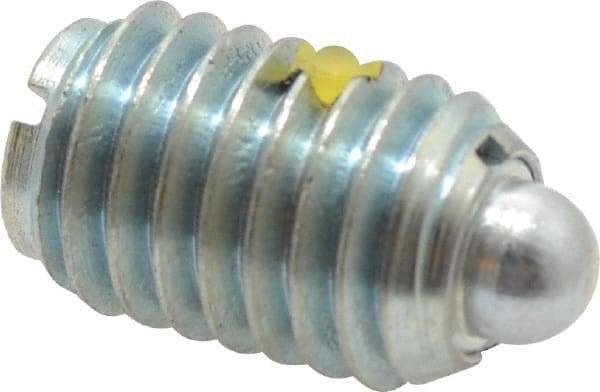

Vlier - 1/2-13, 3/4" Thread Length, 0.151" Plunger Projection, Steel Threaded Spring Plunger - 1/4" Max Plunger Diam, 0.75" Plunger Length, 1.75 Lb Init End Force, 5.5 Lb Final End Force
Item #: 62120092
Brand: Vlier
Model #: M61N
Exact Tooling IR#: 04
Features and Benefits
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| Thread Size | 1/2-13 |
| Thread Length (Decimal Inch) | 0.7500 |
| Nose Material | Steel |
| Body Material | Steel |
| Maximum Plunger Diameter (Decimal Inch) | 0.2480 |
| Plunger Projection (Decimal Inch) | 0.1510 |
| Locking Element | Yes |
| Body Length (Decimal Inch) | 0.7500 |
| Plunger Length Type | Stubby |
| Plunger Length (Decimal Inch) | 0.7500 |
| Final End Force (Lb.) | 5.50 |
| Initial End Force (Lb.) | 1.75 |
