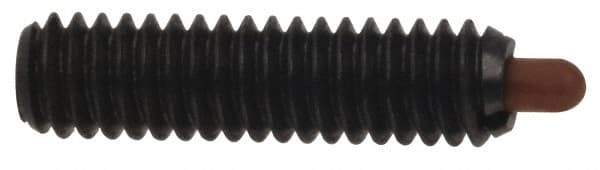

Vlier - 3/8-16, 1-1/8" Thread Length, 3/16" Plunger Projection, Stainless Steel Threaded Spring Plunger - 0.185 - 3/16" Max Plunger Diam, 1-1/8" Plunger Length, 2.8 Lb Init End Force, 7.2 Lb Final End Force
Item #: 62118823
Brand: Vlier
Model #: SSSD59N
Exact Tooling IR#: 04
Features and Benefits
Delrin is a thermoplastic resin that combines the properties of metal and plastic. It offers strength, hardness, dimensional stability, fuel and abrasion resistance as well as has low friction.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Thread Size | 3/8-16 |
| Thread Length (Inch) | 1-1/8 |
| Nose Material | Delrin |
| Body Material | Stainless Steel |
| Maximum Plunger Diameter (Decimal Inch) | 0.1870 |
| Plunger Projection (Inch) | 3/16 |
| Locking Element | Yes |
| Minimum Plunger Diameter (Decimal Inch) | 0.1850 |
| Body Length (Inch) | 1-1/8 |
| Plunger Length Type | Standard |
| Plunger Length (Inch) | 1-1/8 |
| Final End Force (Lb.) | 7.20 |
| Initial End Force (Lb.) | 2.80 |
