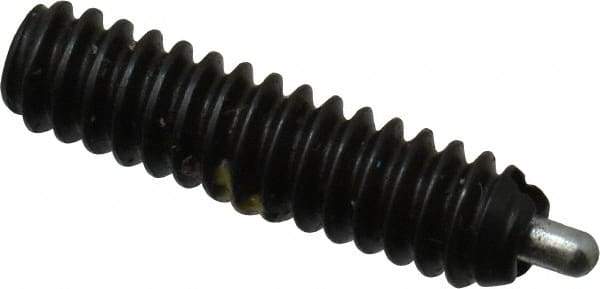

Vlier - 6-32, 17/32" Thread Length, 1/16" Plunger Projection, Steel Threaded Spring Plunger - 0.044 - 0.045" Max Plunger Diam, 17/32" Plunger Length, 0.5 Lb Init End Force, 1.5 Lb Final End Force
Item #: 62116686
Brand: Vlier
Model #: S49P
Exact Tooling IR#: 04
Features and Benefits
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| Thread Size | 6-32 |
| Thread Length (Inch) | 17/32 |
| Nose Material | Steel |
| Body Material | Steel |
| Maximum Plunger Diameter (Decimal Inch) | 0.0450 |
| Plunger Projection (Inch) | 1/16 |
| Locking Element | Yes |
| Minimum Plunger Diameter (Decimal Inch) | 0.0440 |
| Body Length (Inch) | 17/32 |
| Plunger Length Type | Standard |
| Plunger Length (Inch) | 17/32 |
| Final End Force (Lb.) | 1.50 |
| Initial End Force (Lb.) | 0.50 |
