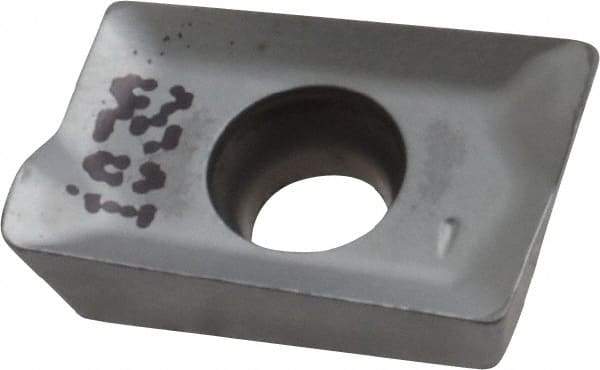

Ingersoll Cutting Tools - APKT120308 HS Grade IN1030 Carbide Milling Insert - TiCN Finish, 0.145" Thick, 0.031" Corner Radius
Item #: 62028758
Brand: Ingersoll Cutting Tools
Model #: 5802378
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | APKT |
| Insert Size | 120308 |
| Material | Carbide |
| Material Grade | C1/C2/C6 |
| Manufacturer's Grade | IN1030 |
| Coating | TiCN |
| Width (Decimal Inch) | 0.3130 |
| Length (Decimal Inch) | 0.4800 |
| Thickness (Decimal Inch) | 0.1450 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Relief Angle | 11.000 |
| Coating Process | PVD |
| Included Angle | 85 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | HS |
| ISO Number | APKT120308R-HS |
