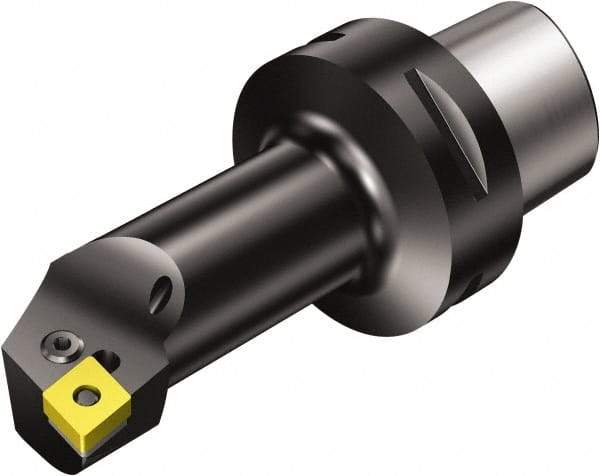

Sandvik Coromant - Left Hand, C6 CNMG 432 Modular Turning and Profiling Cutting Unit Head - Lever Holding Method, 1.2598 Inch Hole Diameter, Through Coolant
Item #: 61970711
Brand: Sandvik Coromant
Model #: 6188402
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C6 |
| Series Name | T-Max P |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 100.00 |
| Head Length/Projection (Decimal Inch) | 3.9370 |
| Insert Style | CNMG 432 |
| Center to Cutting Edge (mm) | 17.00 |
| Center to Cutting Edge (Decimal Inch) | 0.6693 |
| Insert Holding Method | Lever |
| Through Coolant | Through Coolant |
| Minimum Hole Diameter (mm) | 32.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.2598 |
| Center to Cutting Height (mm) | 68.00 |
| Center to Cutting Height (Decimal Inch) | 2.6772 |
| Complete Insert Compatibility | CNMG 12 04 08 |
