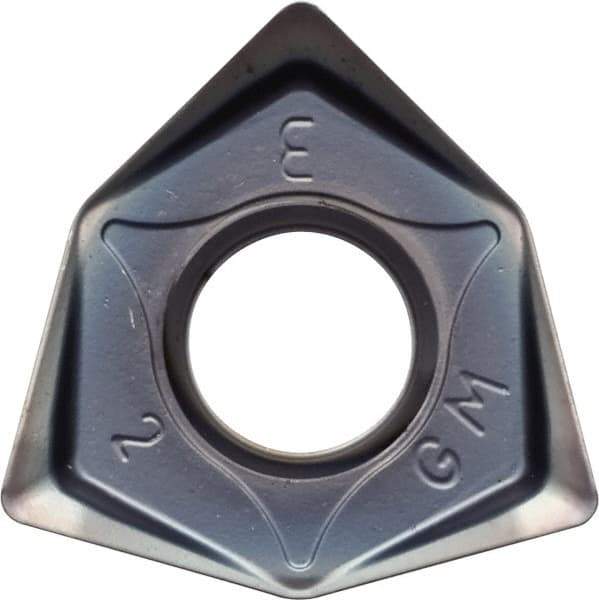

Kyocera - WNMU080608 Grade PR1510 Carbide Milling Insert - Megacoat Nano Finish, 6.65mm Thick, 14.02mm Inscribed Circle, 1/32" Corner Radius
Item #: 61882999
Brand: Kyocera
Model #: 8835793
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WNMU |
| Insert Size | 080608 |
| Material | Carbide |
| Manufacturer's Grade | PR1510 |
| Coating | Megacoat Nano |
| Inscribed Circle (mm) | 14.02 |
| Inscribed Circle (Decimal Inch) | 0.5520 |
| Thickness (mm) | 6.65 |
| Thickness (Decimal Inch) | 0.2618 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Hole Diameter (mm) | 6.20 |
| Hole Diameter (Decimal Inch) | 0.2441 |
| Rake | Positive |
| Coating Process | PVD |
| Included Angle | 80 |
| Shape | Trigon |
| Insert Hand | Neutral |
