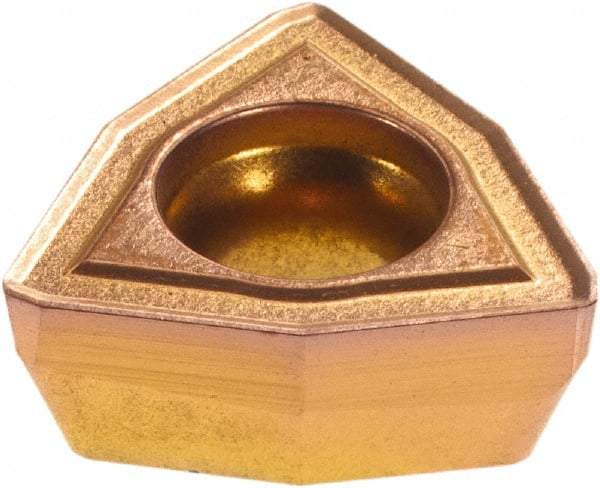

Allied Machine and Engineering - OP060408 Carbide Indexable Drill Insert - AM300 Finish, Trigon, 3/8" Inscribed Circle
Item #: 61644555
Brand: Allied Machine and Engineering
Model #: OP-060408-1PW
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
AM300 coating allows for the best performance in minimum quantity lubricant applications. It offers excellent wear characteristics and is similar to AM200 coating, but with improved wear resistance at higher penetration rates. Ideal for most high penetration drilling applications. AM300 is a proprietary coating exclusive to Allied Machine.
| Product Specifications | |
|---|---|
| Insert Style | OP |
| Insert Size | 060408 |
| Material | Carbide |
| Material Grade | C1 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Shape | Trigon |
| Coating | AM300 |
