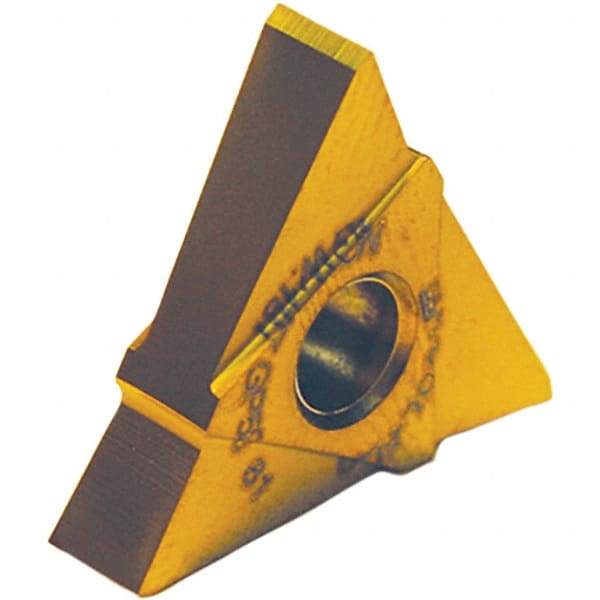

Tool-Flo - 43TPMA Grade GP50C, 3.18mm Cutting Width Carbide Grooving Insert - 0.215" Max Depth of Cut, Right Hand, TiN Finish
Item #: 61473120
Brand: Tool-Flo
Model #: R4012500N4C
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPMA |
| Insert Size | 43 |
| Material | Carbide |
| Cutting Width (mm) | 3.18 |
| Cutting Width (Decimal Inch) | 0.1250 |
| Maximum Depth of Cut (Decimal Inch) | 0.2150 |
| Manufacturer's Grade | GP50C |
| Coating | TiN |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Multi-Use Tool | No |
| Coating Process | PVD |
| Series | On-Edge |
| Rake | Positive |
| Manufacturers Catalog Number | TPMA 43 NGR W.125 |
| Insert Thickness (Decimal Inch) | 0.1890 |
