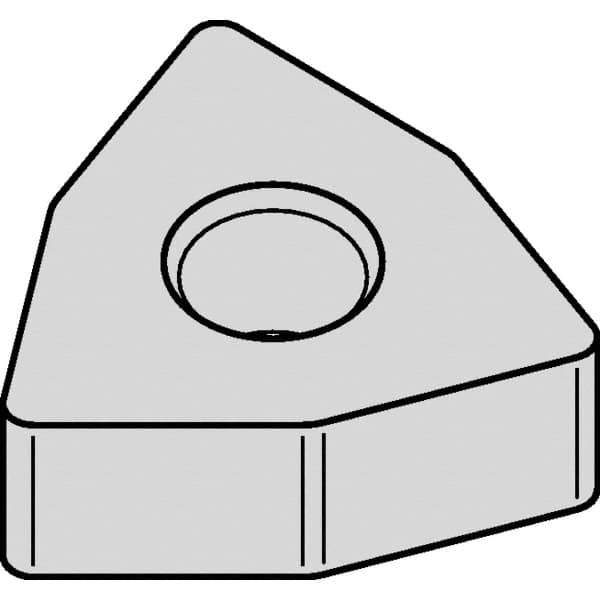

Kennametal - WNMA333 NONE Grade KCK20B Carbide Turning Insert - TiOCN Finish, 80° Trigon, 3/8" Inscr Circle, 3/16" Thick, 3/64" Corner Radius
Item #: 61281895
Brand: Kennametal
Model #: 5642182
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WNMA |
| Insert Size | 333 |
| Material | Carbide |
| Length (mm) | 6.52 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Manufacturer's Grade | KCK20B |
| Coating | TiOCN |
| Chip Breaker | None |
| Insert Length (Decimal Inch) | 0.2565 |
| Hole Diameter (mm) | 3.81 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| ISO Number | WNMA060412 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Primary Workpiece Material | K |
| Included Angle | 80 |
| Insert Hand | Neutral |
| Series | KENLOC |
| Insert Holding Method | Pin & Clamp |
| Shape | Trigon |
