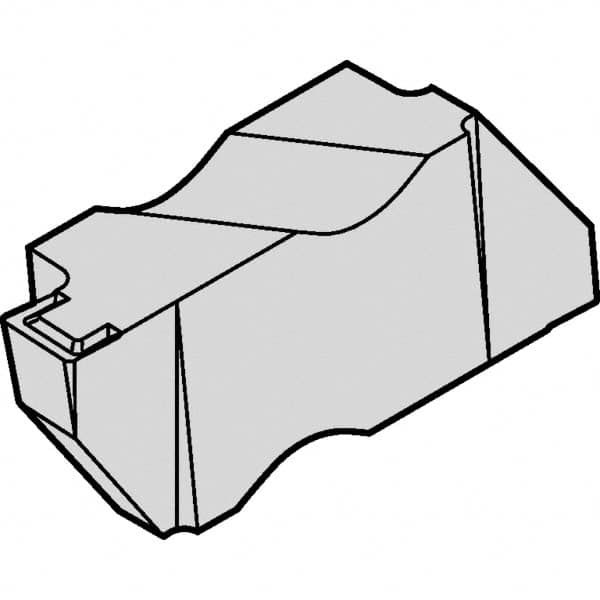

Kennametal - NG4189LK KCP25B Carbide Grooving Insert
Item #: 61268082
Brand: Kennametal
Model #: 5968077
Product Specifications
| Insert Style | NG |
| Insert Size | 4 |
| Material | Carbide |
| Cutting Width (mm) | 4.80 |
| Cutting Width (Decimal Inch) | 0.1890 |
| Maximum Depth of Cut (mm) | 6.35 |
| Maximum Depth of Cut (Inch) | 1/4 |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Manufacturer's Grade | KCP25B |
| Coating | TiOCN |
| Insert Hand | Left Hand |
| Cutting Height (mm) | 11.51 |
| Cutting Height (Decimal Inch) | 0.4530 |
| Lead Angle | 3 |
| Relief Angle | 3 |
| Insert Seat Size | 4 |
| Chipbreaker | K |
| Multi-Use Tool | No |
| Minimum Corner Radius (Decimal Inch) | 0.0200 |
| Maximum Corner Radius (Decimal Inch) | 0.1890 |
| Corner Radius (mm) | 0.572 |
| Corner Radius (Decimal Inch) | 0.0225 |
| Coating Process | CVD |
| Series | Top Notch |
| Rake Angle | 10 |
| Rake | Positive |
| Overall Width (mm) | 6.50 |
| Overall Width (Decimal Inch) | 0.2560 |
| Insert Thickness (Decimal Inch) | 0.4530 |
| Series Number | Top Notch |
| Insert Holding Method | Clamp |
| Corner Radius (Inch) | 0.0225 |
