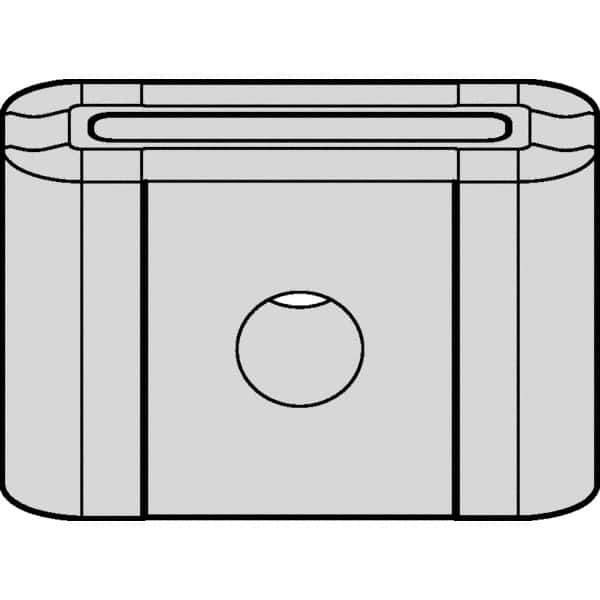

Kennametal - LNUX301940, KCP10B Grade Carbide Profiling Insert - TiN Finish, 90° Incl Angle, Rectangle, 3/4" Thick, 3/19" Corner Radius, 1/4" Inscribed Circle
Item #: 61267308
Brand: Kennametal
Model #: 5941012
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | LNUX |
| Insert Size | 301940 |
| Manufacturer's Grade | KCP10B |
| Width (mm) | 12.00 |
| Width (Decimal Inch) | 0.4722 |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Width (Inch) | 0.472 |
| Thickness (mm) | 19.05 |
| Thickness (Decimal Inch) | 0.7500 |
| Thickness (Inch) | 3/4 |
| Insert Height (mm) | 19.05 |
| Insert Height (Decimal Inch) | 0.7500 |
| Corner Radius (mm) | 4.00 |
| Corner Radius (Inch) | 0.1575 |
| Corner Radius (Decimal Inch) | 0.1563 |
| Relief Angle | 0 |
| Coating | TiN |
| Insert Length (mm) | 30.00 |
| Insert Length (Decimal Inch) | 1.1811 |
| Insert Length (Inch) | 1.181 |
| Length (Decimal Inch) | 1.1811 |
| Length (mm) | 30.00 |
| Hole Diameter (mm) | 6.35 |
| Hole Diameter (Decimal Inch) | 0.2500 |
| Coating Process | CVD |
| Secondary Workpiece Material | K |
| Primary Workpiece Material | P |
| Chipbreaker | RRSM |
| Included Angle | 90 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 1.1811 |
| Insert Holding Method | Screw |
| Shape | Rectangle |
