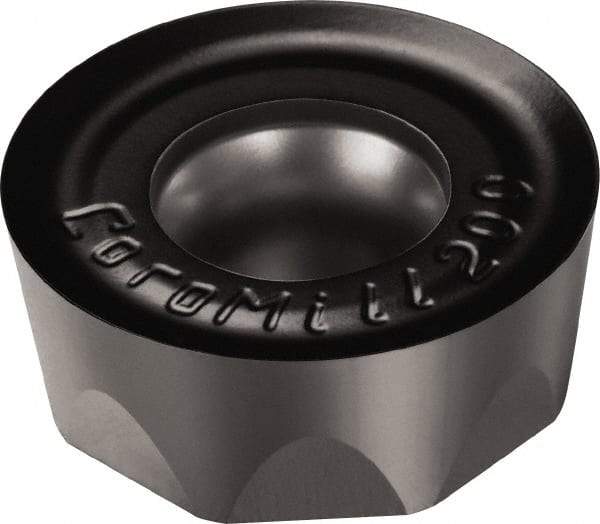

Sandvik Coromant - RCHT09T300 PL Grade 1010 Carbide Milling Insert - TiAlN2 Finish, 0.1563" Thick, 3/8" Inscribed Circle, 3/16" Corner Radius
Item #: 61137402
Brand: Sandvik Coromant
Model #: 5740350
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCHT |
| Insert Size | 09T300 |
| Material | Carbide |
| Manufacturer's Grade | 1010 |
| Coating | TiAlN2 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Decimal Inch) | 0.1875 |
| Hole Diameter (mm) | 4.00 |
| Hole Diameter (Decimal Inch) | 0.1575 |
| Relief Angle | 7.000 |
| Coating Process | PVD |
| Shape | Round |
| Insert Hand | Neutral |
| Chipbreaker | PL |
| Maximum Depth of Cut (Decimal Inch) | 0.1875 |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | 5740350 |
| ISO Number | RCHT 09 T3 00-PL 1010 |
