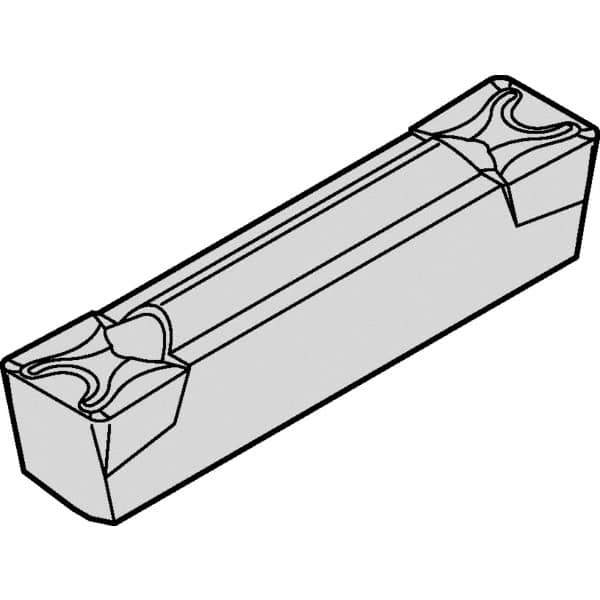

Kennametal - 3A4G-U GMN Grade KCP25, 3.05mm Cutting Width Carbide Grooving Insert - 3.5mm Max Depth of Cut, Neutral, 0.2mm Corner Radius, TiN Finish
Item #: 61105334
Brand: Kennametal
Model #: 4137020
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | A4G-U |
| Insert Size | 3 |
| Material | Carbide |
| Cutting Width (mm) | 3.05 |
| Cutting Width (Decimal Inch) | 0.1200 |
| Maximum Depth of Cut (mm) | 3.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.1380 |
| Manufacturer's Grade | KCP25 |
| Coating | TiN |
| Insert Hand | Neutral |
| Cutting Height (mm) | 4.02 |
| Cutting Height (Decimal Inch) | 0.1580 |
| Lead Angle | 0 |
| Insert Seat Size | 3 |
| Chipbreaker | GMN |
| Multi-Use Tool | Yes |
| Multi-Use Application | Cut-Off; Grooving; Profiling; Facing; Turning |
| Corner Radius (mm) | 0.2 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Coating Process | CVD |
| Overall Length (mm) | 20.00 |
| Overall Length (Decimal Inch) | 0.7870 |
| Series | A4 |
| Rake Angle | 0 |
| Rake | Neutral |
| Manufacturers Catalog Number | A4G0305M03U02GMN |
| Overall Width (mm) | 2.58 |
| Overall Width (Decimal Inch) | 0.1010 |
| Insert Thickness (Decimal Inch) | 0.1580 |
