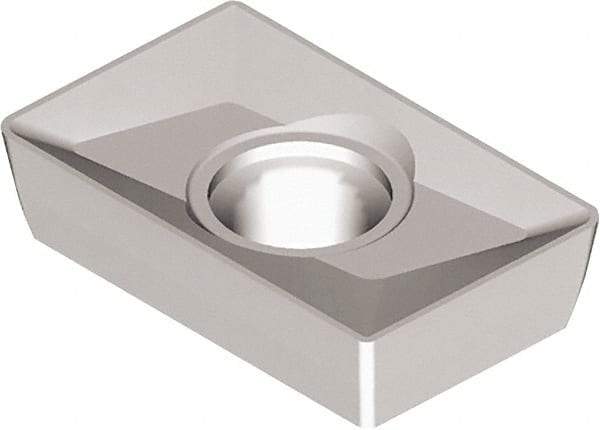

Kyocera - XPMT15 Grade CA2325 Carbide Milling Insert - 3.9624mm Thick, 3/8" Inscribed Circle, 1/4" Corner Radius
Item #: 61090676
Brand: Kyocera
Model #: 8850595
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XPMT |
| Insert Size | 15 |
| Material | Carbide |
| Manufacturer's Grade | CA2325 |
| Width (Decimal Inch) | 0.3750 |
| Length (Decimal Inch) | 0.6070 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (mm) | 3.96 |
| Thickness (Decimal Inch) | 0.1560 |
| Corner Radius (Decimal Inch) | 0.2500 |
| Hole Diameter (Decimal Inch) | 0.1570 |
| Relief Angle | 15.000 |
| Coating Process | CVD |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Manufacturers Catalog Number | XPMT15T364 |
