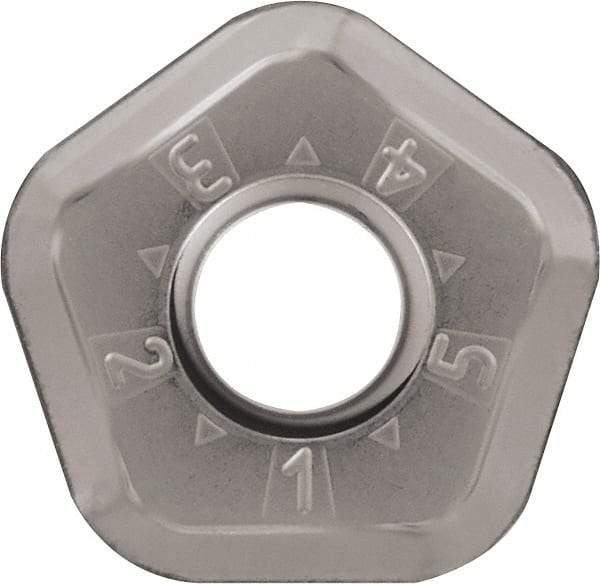

Kyocera - PNMU1205 GH Grade PR1210 Carbide Milling Insert - Megacoat Finish, 6.17mm Thick
Item #: 61084646
Brand: Kyocera
Model #: 8831692
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | PNMU |
| Insert Size | 1205 |
| Material | Carbide |
| Manufacturer's Grade | PR1210 |
| Coating | Megacoat |
| Width (mm) | 17.98 |
| Width (Decimal Inch) | 0.7079 |
| Thickness (mm) | 6.17 |
| Thickness (Decimal Inch) | 0.2429 |
| Hole Diameter (mm) | 6.20 |
| Hole Diameter (Decimal Inch) | 0.2441 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Shape | Pentagon |
| Insert Hand | Right Hand |
| Chipbreaker | GH |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | PNMU1205ANER-GH |
