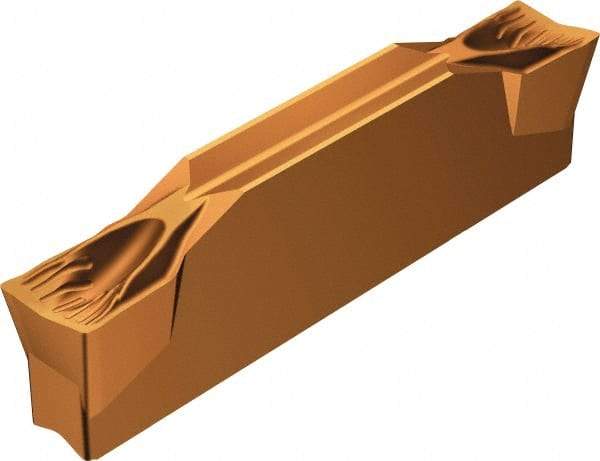

Sandvik Coromant - L123x2G CF 1125 Grade, 0.1181" Cutting Width, Carbide Cutoff Insert - 0° Left Hand Lead Angle, 0.0059" Cnr Rad, TiAlN Coated
Item #: 61017745
Brand: Sandvik Coromant
Model #: 5732525
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | L123x2 |
| Insert Size | G |
| Lead Angle Direction | Left Hand |
| Lead Angle | 0 |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Manufacturer's Grade | 1125 |
| Coating | TiAlN |
| Series | CoroCut 1-2 |
| Relief Angle | 7 |
| Chipbreaker | CF |
| Maximum Depth of Cut (mm) | 18.30 |
| Maximum Depth of Cut (Decimal Inch) | 0.7205 |
| Full Radius | No |
| Multi-Use Application | Yes |
| Coating Process | PVD |
| Overall Length (mm) | 19.87 |
| Overall Length (Decimal Inch) | 0.7823 |
| Corner Radius (Decimal Inch) | 0.0059 |
| Corner Radius (mm) | 0.15 |
| Insert Hand | Left Hand |
| Insert Holding Method | Clamp |
| Insert Seat Size | G |
| Overall Width (mm) | 3.00 |
| Overall Width (Decimal Inch) | 0.1181 |
| Manufacturers Catalog Number | L123G2-0300-0501-CF 1125 |
