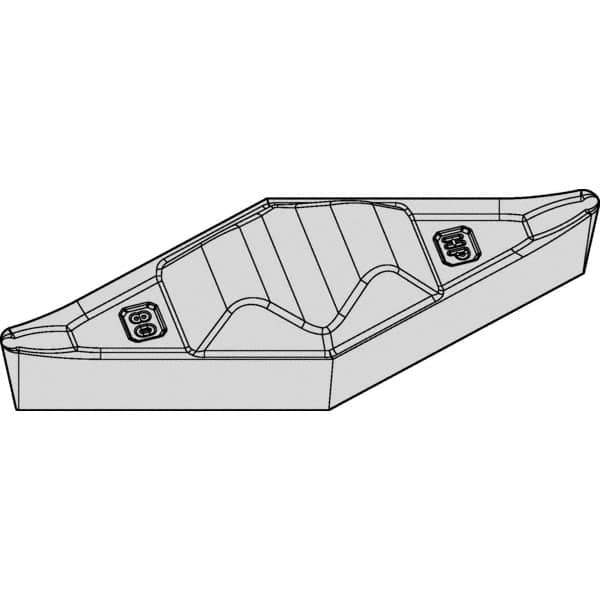

Kennametal - VPGR331, K313 Grade Carbide Profiling Insert - Uncoated, 35° Incl Angle, Diamond, 0.654" Side Length, 3/16" Thick, 0.4mm Corner Radius, 9.52mm Inscribed Circle
Item #: 60968542
Brand: Kennametal
Model #: 5327912
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | VPGR |
| Insert Size | 331 |
| Manufacturer's Grade | K313 |
| Inscribed Circle (mm) | 9.52 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (mm) | 4.76 |
| Thickness (Decimal Inch) | 0.1875 |
| Thickness (Inch) | 3/16 |
| Insert Height (mm) | 4.76 |
| Insert Height (Decimal Inch) | 0.1875 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Relief Angle | 8 |
| Coating | Uncoated |
| Length (Decimal Inch) | 0.6540 |
| Length (mm) | 16.61 |
| Side Length (Decimal Inch) | 0.6540 |
| Side Length (mm) | 16.61 |
| Primary Workpiece Material | N; S |
| Chipbreaker | HP |
| Included Angle | 35 |
| Insert Hand | Neutral |
| Insert Holding Method | Clamp |
| Shape | Diamond |
