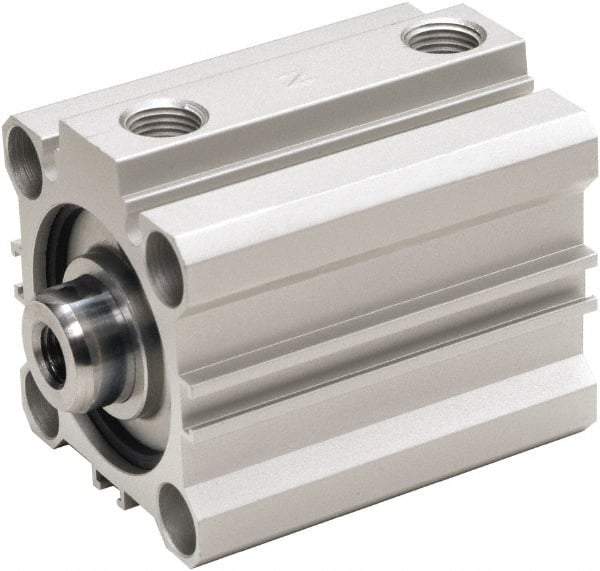

ARO/Ingersoll-Rand - 25mm Stroke x 12mm Bore Double Acting Air Cylinder - 10-32 Port, 8-32 Rod Thread, 140 Max psi, 15 to 140°F
Item #: 60940244
Brand: ARO/Ingersoll-Rand
Model #: MDS12-AAADN-025
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Double Acting |
| Bore Size (mm) | 12.00 |
| Rod Diameter (mm) | 6.00 |
| Stroke Length (mm) | 25.00 |
| Mounting Style | Through Hole |
| Port Size | 10-32 |
| Port Type | UNF |
| Width (mm) | 23.00 |
| Length (mm) | 56.50 |
| Material | Aluminum |
| Seal Material | Buna |
| Maximum Working Pressure (psi) | 140 |
| Rod Thread Size | 8-32 |
| Style | Square |
| Cushions | None |
