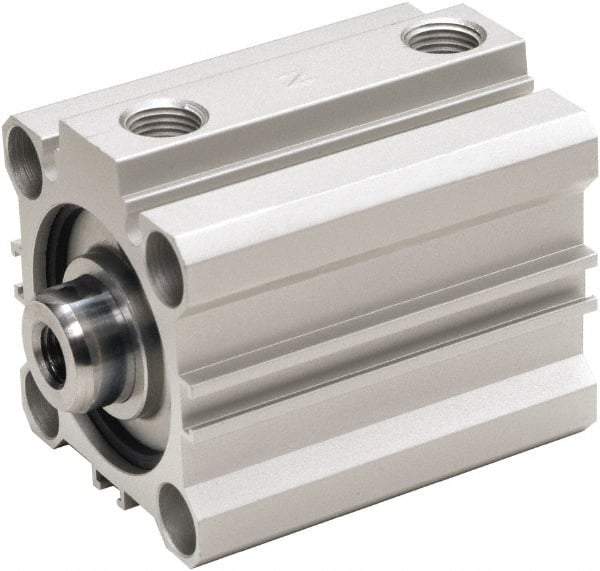

ARO/Ingersoll-Rand - 30mm Stroke x 25mm Bore Double Acting Air Cylinder - 10-32 Port, 1/4-28 Rod Thread, 140 Max psi, 15 to 140°F
Item #: 60940137
Brand: ARO/Ingersoll-Rand
Model #: MDS25-AAADN-030
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Double Acting |
| Bore Size (mm) | 25.00 |
| Rod Diameter (mm) | 12.00 |
| Stroke Length (mm) | 30.00 |
| Mounting Style | Through Hole |
| Port Size | 10-32 |
| Port Type | UNF |
| Width (mm) | 36.90 |
| Length (mm) | 67.50 |
| Material | Aluminum |
| Seal Material | Buna |
| Maximum Working Pressure (psi) | 140 |
| Rod Thread Size | 1/4-28 |
| Style | Square |
| Cushions | None |
