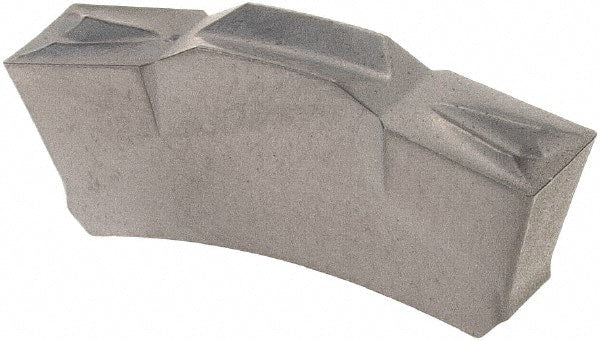

Iscar - TGMF-402 IC-20 Carbide Grooving Insert
Item #: 60877115
Brand: Iscar
Model #: 6450047
Product Specifications
| Insert Style | TGMF |
| Insert Size | 402 |
| Material | Carbide |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Maximum Depth of Cut (mm) | 14.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.5787 |
| Manufacturer's Grade | IC20 |
| Coating | Uncoated |
| Insert Hand | Neutral |
| Multi-Use Application | Boring; Grooving; Turning |
| Multi-Use Tool | Yes |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Overall Length (mm) | 17.70 |
| Overall Length (Decimal Inch) | 0.6969 |
| Series | Top Grip |
| ISO Number | TGMF 402 |
| Manufacturers Catalog Number | TGMF 402 |
