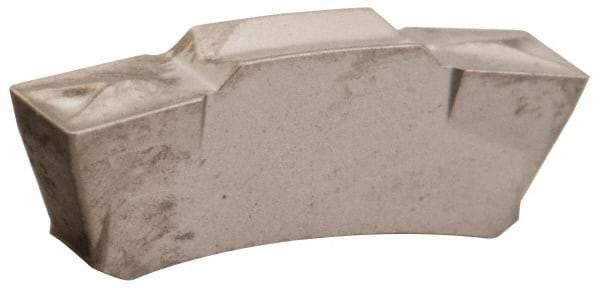

Iscar - 525TGMF Grade IC20, 5mm Cutting Width Carbide Grooving Insert - 2.5mm Max Depth of Cut, Neutral, 0.098" Corner Radius, Uncoated
Item #: 60876612
Brand: Iscar
Model #: 6450030
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TGMF |
| Insert Size | 525 |
| Material | Carbide |
| Cutting Width (mm) | 5.00 |
| Cutting Width (Decimal Inch) | 0.1969 |
| Maximum Depth of Cut (mm) | 2.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0984 |
| Material Grade | C2/C3 |
| Manufacturer's Grade | IC20 |
| Coating | Uncoated |
| Insert Hand | Neutral |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Turning |
| Corner Radius (Decimal Inch) | 0.0980 |
| Overall Length (mm) | 17.75 |
| Overall Length (Decimal Inch) | 0.6988 |
