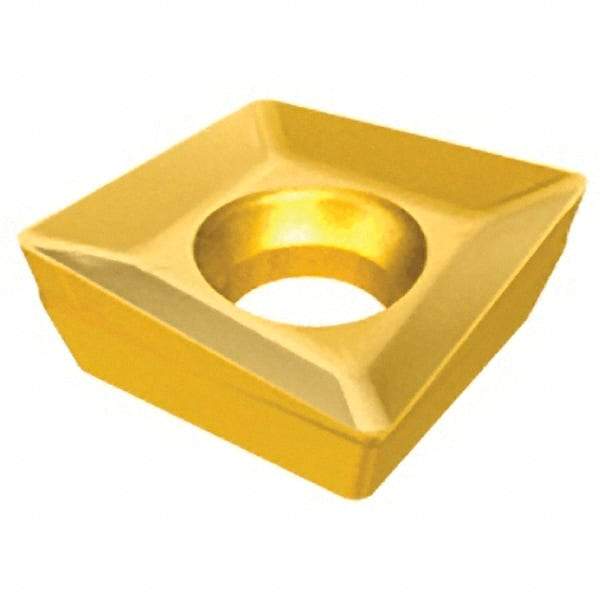

Iscar - XOMT060204 HQ Grade IC250 Carbide Milling Insert - TiCN/TiN Finish, 0.1008" Thick, 0.2425" Inscribed Circle, 0.4mm Corner Radius
Item #: 60839644
Brand: Iscar
Model #: 5600885
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XOMT |
| Insert Size | 060204 |
| Material | Carbide |
| Manufacturer's Grade | IC250 |
| Coating | TiCN/TiN |
| Inscribed Circle (Decimal Inch) | 0.2425 |
| Thickness (Decimal Inch) | 0.1008 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Corner Radius (mm) | 0.40 |
| Relief Angle | 22.000 |
| Rake Angle | 22 |
| Rake | Positive |
| Coating Process | PVD |
| Shape | Square |
| Chipbreaker | HQ |
| ISO Number | XOMT 060204-HQ |
