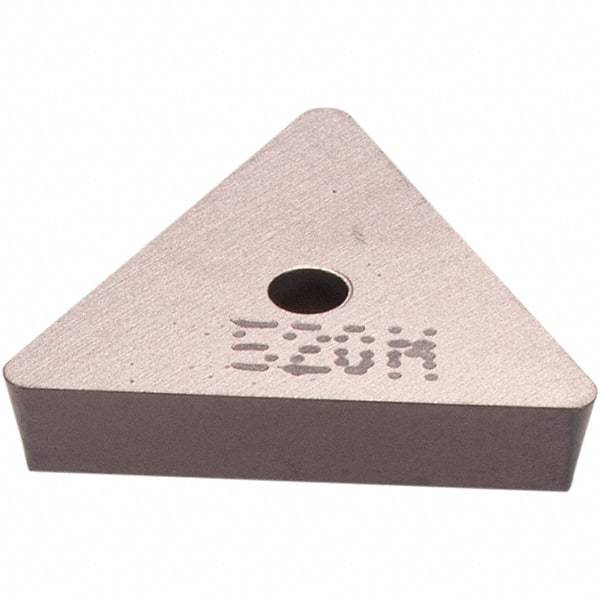

Iscar - TPU322 Grade IC520M Carbide Milling Insert - TiCN Finish, 1/8" Thick, 3/8" Inscribed Circle, 0.79mm Corner Radius
Item #: 60839081
Brand: Iscar
Model #: 5600424
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPU |
| Insert Size | 322 |
| Material | Carbide |
| Manufacturer's Grade | IC520M |
| Coating | TiCN |
| Length (Decimal Inch) | 0.6300 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.79 |
| Relief Angle | 11.000 |
| Rake Angle | 11 |
| Rake | Neutral |
| Coating Process | CVD |
| Included Angle | 60 |
| Shape | Triangle |
| Manufacturers Catalog Number | TPU 322 |
