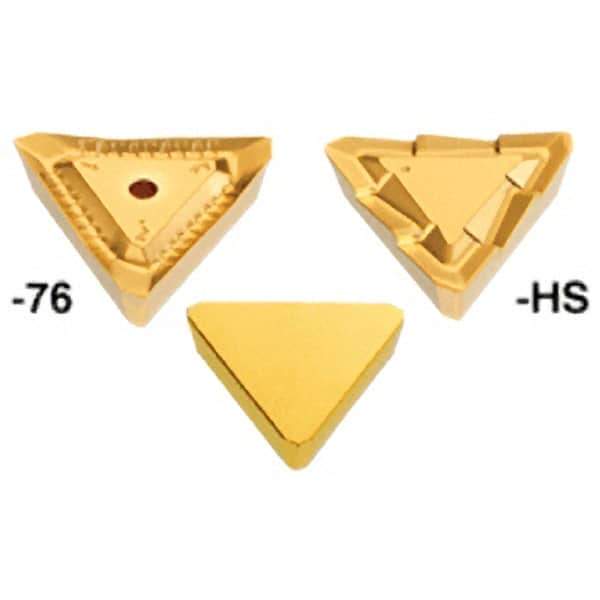

Iscar - TPK43 TR Grade IC520M Carbide Milling Insert - TiCN Finish, 3/16" Thick, 1/2" Inscribed Circle
Item #: 60838380
Brand: Iscar
Model #: 5600413
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPK |
| Insert Size | 43 |
| Material | Carbide |
| Manufacturer's Grade | IC520M |
| Coating | TiCN |
| Length (Decimal Inch) | 0.8660 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Relief Angle | 11.000 |
| Coating Process | CVD |
| Included Angle | 60 |
| Shape | Triangle |
| Chipbreaker | TR |
| Manufacturers Catalog Number | TPK 43PDTR |
