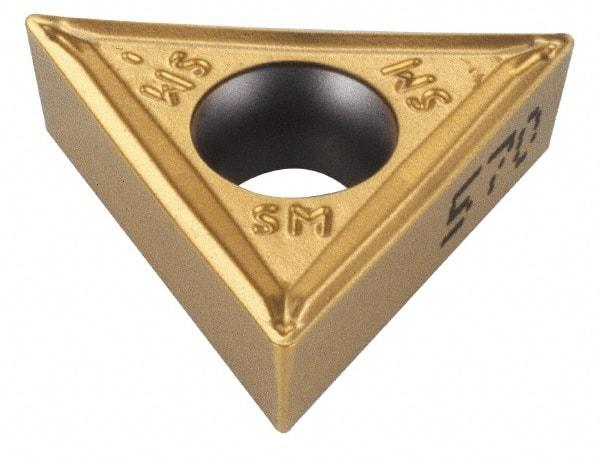

Iscar - TCMT110204 19 Grade IC20 Carbide Milling Insert - Uncoated, 1/4" Inscribed Circle, 0.0937" Thick, 0.4mm Corner Radius
Item #: 60835923
Brand: Iscar
Model #: 5600279
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TCMT |
| Insert Size | 2-1 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (Decimal Inch) | 0.0937 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Manufacturer's Grade | IC20 |
| Coating | Uncoated |
| Chip Breaker | 19 |
| Relief Angle | 7 |
| Included Angle | 60 |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Shape | Triangle |
