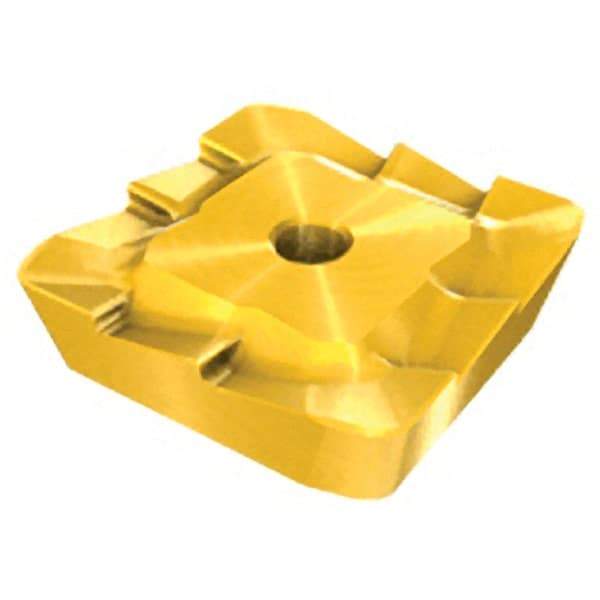

Iscar - SPKR42 HS Grade IC250 Carbide Milling Insert - TiCN/TiN Finish, 1/8" Thick, 1/2" Inscribed Circle
Item #: 60835345
Brand: Iscar
Model #: 5600795
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SPKR |
| Insert Size | 42 |
| Material | Carbide |
| Manufacturer's Grade | IC250 |
| Coating | TiCN/TiN |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Relief Angle | 11.000 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Square |
| Chipbreaker | HS |
| Maximum Depth of Cut (mm) | 9.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.3740 |
| Manufacturers Catalog Number | SPKR 42EDTR-HS |
