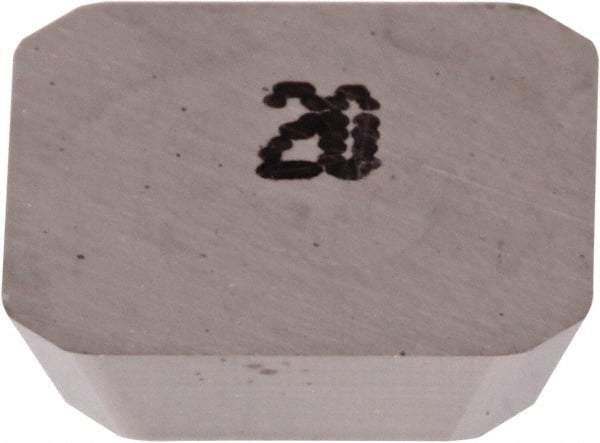

Iscar - SEK42 FN Grade IC20 Carbide Milling Insert - Uncoated, 1/8" Thick, 1/2" Inscribed Circle
Item #: 60831427
Brand: Iscar
Model #: 5600135
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SEK |
| Insert Size | 42 |
| Material | Carbide |
| Manufacturer's Grade | IC20 |
| Coating | Uncoated |
| Width (Inch) | 1/2 |
| Width (Decimal Inch) | 0.5000 |
| Length (Inch) | 1/2 |
| Length (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Relief Angle | 20.000 |
| Rake | Neutral |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Neutral |
| Chipbreaker | FN |
| Maximum Depth of Cut (mm) | 6.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.2560 |
| Cutting Edge Style | Sharp |
| ISO Number | SEKN 1203AFFN |
