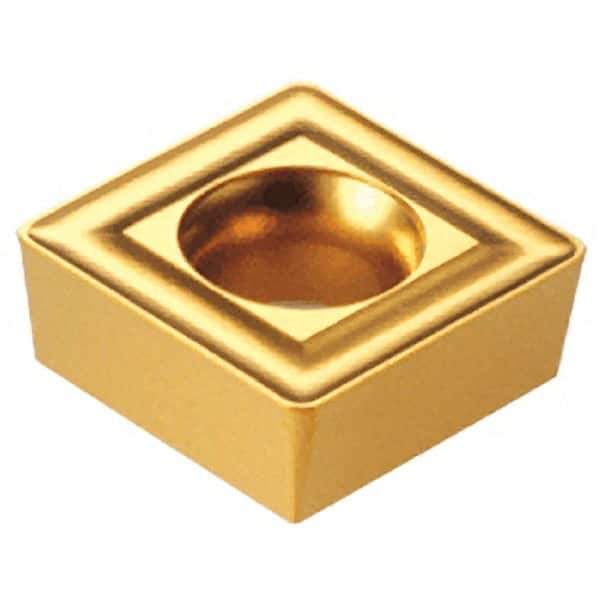

Iscar - SCMT3219 19 Grade IC520M Carbide Milling Insert - TiCN Finish, 0.3748" Inscribed Circle, 0.1563" Thick, 0.8mm Corner Radius
Item #: 60830585
Brand: Iscar
Model #: 5600096
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SCMT |
| Insert Size | 3-2 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3748 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Manufacturer's Grade | IC520M |
| Coating | TiCN |
| Chip Breaker | 19 |
| ISO Number | SCMT 09T308-19 |
| Relief Angle | 7 |
| Coating Process | CVD |
| Included Angle | 90 |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Shape | Square |
