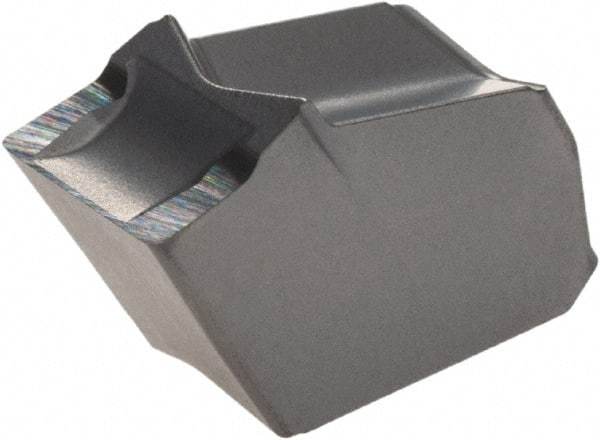

Iscar - GFN8 IC20 Grade, 0.3142" Cutting Width, Carbide Cutoff Insert - Neutral Lead Angle, 0.0165" Cnr Rad, Single End
Item #: 60799418
Brand: Iscar
Model #: 6000373
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | GFN |
| Insert Size | 8 |
| Lead Angle Direction | Neutral |
| Cutting Width (mm) | 7.98 |
| Cutting Width (Decimal Inch) | 0.3142 |
| Material Grade | C2/C3 |
| Manufacturer's Grade | IC20 |
| Coating | Uncoated |
| Series | Self-Grip |
| Relief Angle | 7 |
| Corner Radius (Decimal Inch) | 0.0165 |
| Corner Radius (mm) | 0.42 |
| Insert Holding Method | Clamp |
| Overall Width (mm) | 7.98 |
| Overall Width (Decimal Inch) | 0.3142 |
