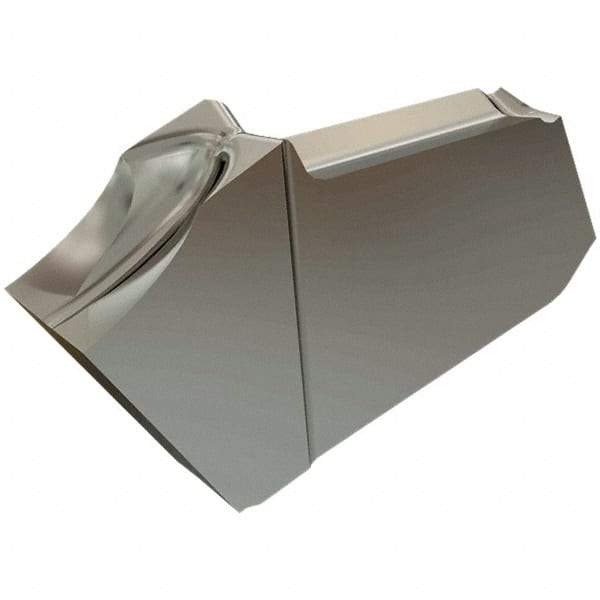

Iscar - GFN4 IC250 Grade, 0.1575" Cutting Width, Carbide Cutoff Insert - Neutral Lead Angle, 0.0098" Cnr Rad, TiCN/TiN Coated, Single End
Item #: 60798451
Brand: Iscar
Model #: 6001581
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | GFN |
| Insert Size | 4 |
| Lead Angle Direction | Neutral |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Material Grade | C5/C6 |
| Manufacturer's Grade | IC250 |
| Coating | TiCN/TiN |
| Series | Self-Grip |
| Relief Angle | 7 |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0098 |
| Corner Radius (mm) | 0.25 |
| Insert Holding Method | Clamp |
| Overall Width (mm) | 4.00 |
| Overall Width (Decimal Inch) | 0.1575 |
