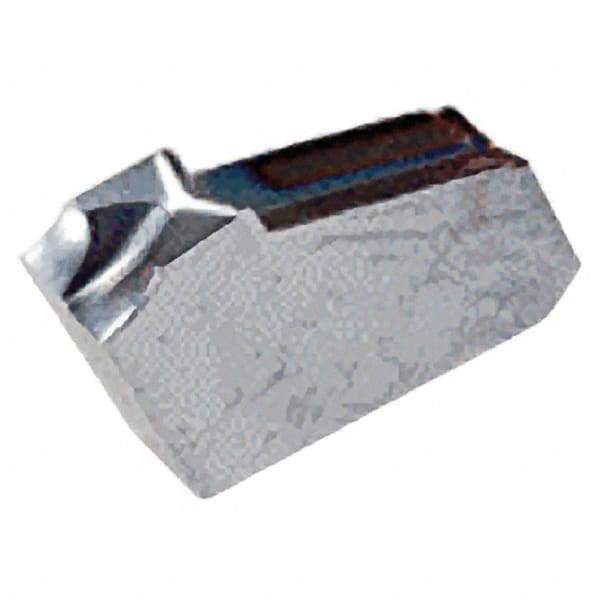

Iscar - GFL J IC20 Grade, 0.1575" Cutting Width, Carbide Cutoff Insert - 6° Left Hand Lead Angle, 0.0098" Cnr Rad, Single End
Item #: 60794716
Brand: Iscar
Model #: 6001325
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | GFL |
| Lead Angle Direction | Left Hand |
| Lead Angle | 6 |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Material Grade | C2/C3 |
| Manufacturer's Grade | IC20 |
| Coating | Uncoated |
| Series | Self-Grip |
| Relief Angle | 7 |
| Chipbreaker | J |
| Corner Radius (Decimal Inch) | 0.0098 |
| Corner Radius (mm) | 0.25 |
| Insert Holding Method | Clamp |
