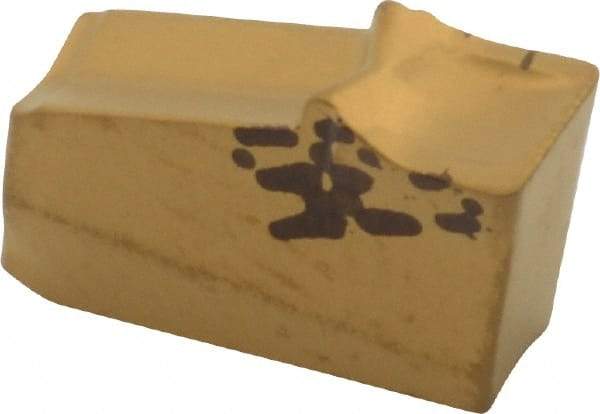

Iscar - 3RGFF Grade IC635, 3mm Cutting Width Carbide Grooving Insert - Right Hand, 0.3mm Corner Radius, TiN/TiC/TiN Finish
Item #: 60790565
Brand: Iscar
Model #: 6000024
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GFF |
| Insert Size | 3R |
| Material | Carbide |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Manufacturer's Grade | IC635 |
| Coating | TiN/TiC/TiN |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Relief Angle | 7 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Facing |
| Corner Radius (mm) | 0.30 |
| Corner Radius (Decimal Inch) | 0.0120 |
| Coating Process | CVD |
| Series | Self-Grip |
| ISO Number | GFF 3R |
| Manufacturers Catalog Number | GFF 3R |
