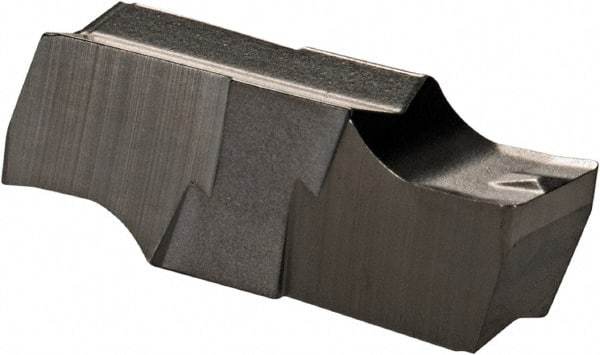

Iscar - 400E040GIPI Grade IC20, 3.99mm Cutting Width Carbide Grooving Insert - 15.49mm Max Depth of Cut, Neutral, 0.41mm Corner Radius, Uncoated
Item #: 60778115
Brand: Iscar
Model #: 6401369
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIPI |
| Insert Size | 400E040 |
| Material | Carbide |
| Cutting Width (mm) | 3.99 |
| Cutting Width (Decimal Inch) | 0.1570 |
| Maximum Depth of Cut (mm) | 15.49 |
| Maximum Depth of Cut (Decimal Inch) | 0.6100 |
| Manufacturer's Grade | IC20 |
| Coating | Uncoated |
| Insert Hand | Neutral |
| Cutting Height (mm) | 5.00 |
| Cutting Height (Decimal Inch) | 0.1970 |
| Relief Angle | 8 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Boring; Grooving; Slotting |
| Corner Radius (mm) | 0.41 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Overall Length (mm) | 15.70 |
| Overall Length (Decimal Inch) | 0.6180 |
| Series | Cut Grip |
| ISO Number | GIPI 4.00E-0.40 |
| Manufacturers Catalog Number | GIPI 4.00E-0.40 |
