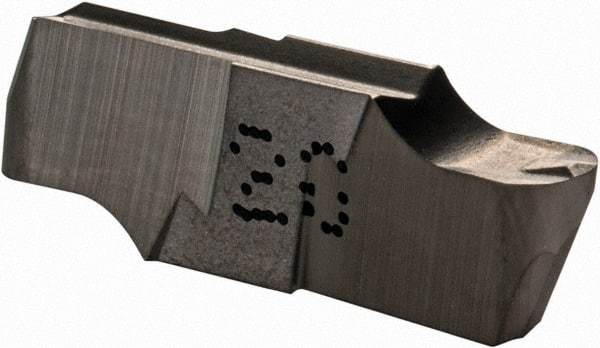

Iscar - 30015GIPI Grade IC20, 3mm Cutting Width Carbide Grooving Insert - Right Hand, 1.5mm Corner Radius, Uncoated
Item #: 60776812
Brand: Iscar
Model #: 6401290
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIPI |
| Insert Size | 30015 |
| Material | Carbide |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Manufacturer's Grade | IC20 |
| Coating | Uncoated |
| Insert Hand | Right Hand |
| Relief Angle | 8 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Profiling; Turning; Undercutting |
| Corner Radius (mm) | 1.50 |
| Corner Radius (Decimal Inch) | 0.0591 |
| Overall Length (mm) | 15.70 |
| Overall Length (Decimal Inch) | 0.6181 |
| Series | Cut Grip |
| Overall Width (mm) | 3.00 |
| Overall Width (Decimal Inch) | 0.1181 |
