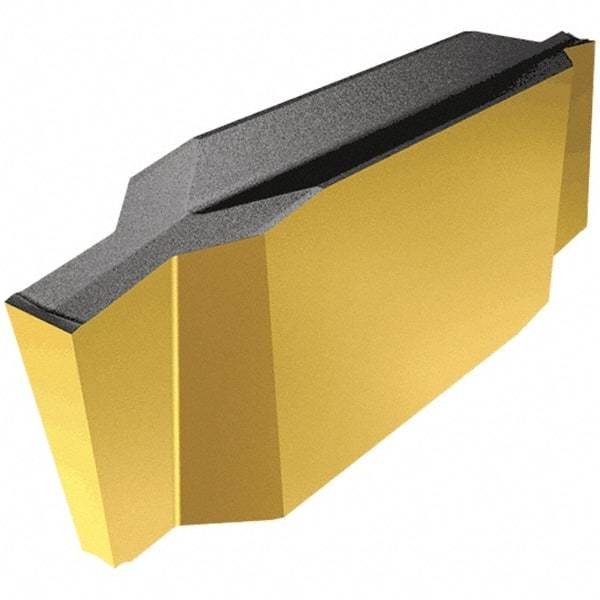

Iscar - 147000GIP Grade IC20, 1.47mm Cutting Width Carbide Grooving Insert - 2.5mm Max Depth of Cut, Neutral, Uncoated
Item #: 60766110
Brand: Iscar
Model #: 6400494
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIP |
| Insert Size | 147000 |
| Material | Carbide |
| Cutting Width (mm) | 1.47 |
| Cutting Width (Decimal Inch) | 0.0579 |
| Maximum Depth of Cut (mm) | 2.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0984 |
| Manufacturer's Grade | IC20 |
| Coating | Uncoated |
| Insert Hand | Neutral |
| Relief Angle | 7 |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.00 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Overall Length (mm) | 15.30 |
| Overall Length (Decimal Inch) | 0.6024 |
| Series | Cut Grip |
| Overall Width (mm) | 1.47 |
| Overall Width (Decimal Inch) | 0.0579 |
