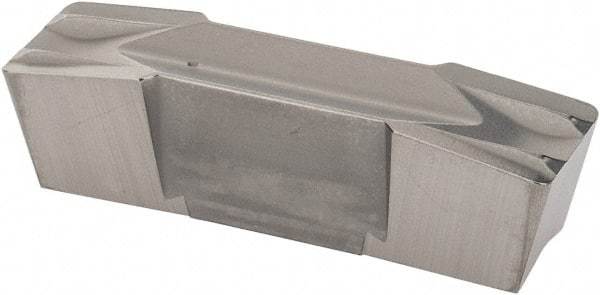

Iscar - 800E080GIF Grade IC20, 8mm Cutting Width Carbide Grooving Insert - 4.8 & 27mm Max Depth of Cut, Neutral, 0.79mm Corner Radius, Uncoated
Item #: 60759412
Brand: Iscar
Model #: 6400263
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIF |
| Insert Size | 800E080 |
| Material | Carbide |
| Cutting Width (mm) | 8.00 |
| Cutting Width (Decimal Inch) | 0.3150 |
| Maximum Depth of Cut (mm) | 4.80; 27.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1890; 1.0630 |
| Material Grade | C2/C3 |
| Manufacturer's Grade | IC20 |
| Coating | Uncoated |
| Insert Hand | Neutral |
| Cutting Height (mm) | 6.40 |
| Cutting Height (Decimal Inch) | 0.2520 |
| Relief Angle | 7 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Boring; Facing; Grooving; Turning |
| Corner Radius (mm) | 0.79 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Overall Length (mm) | 29.97 |
| Overall Length (Decimal Inch) | 1.1800 |
| Series | Cut Grip |
| ISO Number | GIF 8.00E-0.80 |
| Manufacturers Catalog Number | GIF 8.00E-0.80 |
