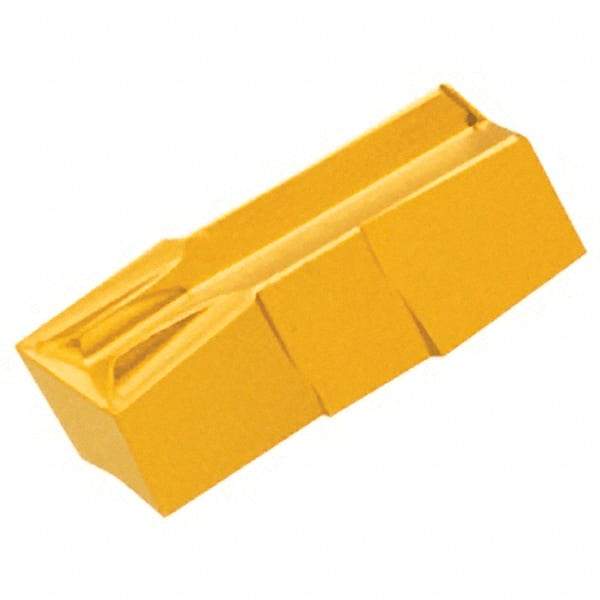

Iscar - 486030GIF Grade IC20, 4.86mm Cutting Width Carbide Grooving Insert - 13mm Max Depth of Cut, Neutral, 0.3mm Corner Radius, Uncoated
Item #: 60757119
Brand: Iscar
Model #: 6400120
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIF |
| Insert Size | 486030 |
| Material | Carbide |
| Cutting Width (mm) | 4.86 |
| Cutting Width (Decimal Inch) | 0.1913 |
| Maximum Depth of Cut (mm) | 13.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5118 |
| Manufacturer's Grade | IC20 |
| Coating | Uncoated |
| Insert Hand | Neutral |
| Relief Angle | 7 |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.30 |
| Corner Radius (Decimal Inch) | 0.0118 |
| Overall Length (mm) | 15.30 |
| Overall Length (Decimal Inch) | 0.6024 |
| Series | Cut Grip |
| Overall Width (mm) | 4.86 |
| Overall Width (Decimal Inch) | 0.1913 |
