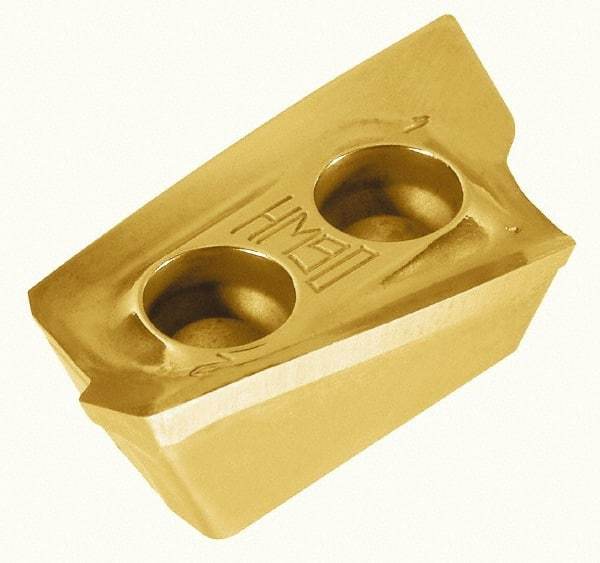

Iscar - HP ADKT2207 Grade IC328 Carbide Milling Insert - TiCN Finish, 0.2953" Thick, 0.8mm Corner Radius
Item #: 60660677
Brand: Iscar
Model #: 5603001
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HP ADKT |
| Insert Size | 2207 |
| Material | Carbide |
| Material Grade | C2/C3/C5/C6 |
| Manufacturer's Grade | IC328 |
| Coating | TiCN |
| Width (Decimal Inch) | 0.1010 |
| Length (Decimal Inch) | 0.8898 |
| Thickness (Decimal Inch) | 0.2953 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Relief Angle | 15.000 |
| Coating Process | PVD |
| Included Angle | 85 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| ISO Number | HP ADKT 2207PDTR |
